The 8 Best I-beam Punching Bag Mounts
Updated by · How we research
Fixed clamps, rolling trolleys and a strap wrap for hanging a heavy bag from a steel beam, compared by fit and rating. The Firstlaw Fitness I-Beam Clamp leads. When users buy our independently chosen editorial recommendations, we may earn commissions to help fund the Wiki.
Every beam clamp fits a set range of flange widths, so the first job is measuring the flat bottom plate of your steel beam, not its height. These mounts hang a heavy bag from that plate without drilling. Fixed clamps suit a bag that stays put, while rolling trolleys let a shared garage or basement clear the floor between workouts.
Editor's Notes
October 26, 2026, by Ezvid Wiki Editors:

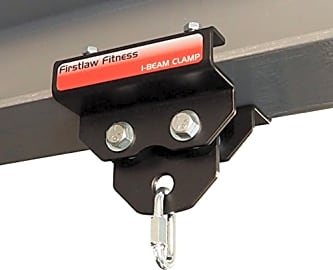

The Firstlaw Fitness I-Beam Clamp moves to the top. Firstlaw rates it for 1,000 pounds, says it pulled one past five times that on a test beam, and backs it for life, which is more than any other maker in this small field puts in writing. The Firstlaw rolling mount from the old list stays, now as the Firstlaw Fitness I-Beam Rolling Mount, and so does the ProMountings IB-2100.

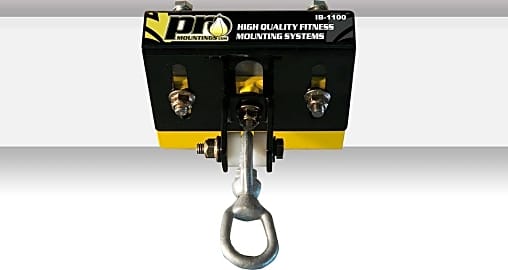

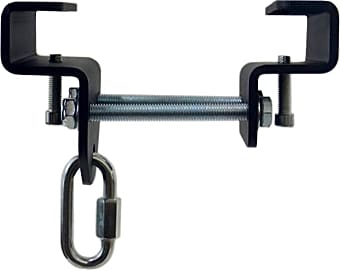

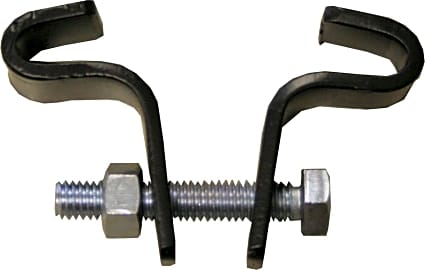

We dropped the ProMountings IB-1100 because it's no longer available. The Qualward MMA and Amber Hanger are gone, and the old Yes4All, Ringside and Title hangers have given way to wall brackets, joist hangers or bare hooks that don't belong on an I-beam list. New picks include the Meister Beam Clamp for anyone unsure of their beam's width, two more rolling mounts, the low-cost Seleware Steel I-Beam Clamp and the Meister Beam Wrap Mount for beams a clamp can't grip.
No lab or magazine has compared beam clamps, so the ranking rests on each maker's published load rating and test claims, their fit charts by flange width, what owners report about fit and loosening, and recall searches that found nothing for any brand here.
Earlier notes
September 30, 2020, by Sam Kraft:

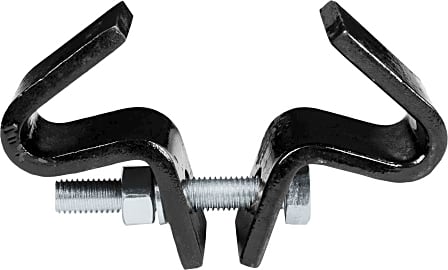

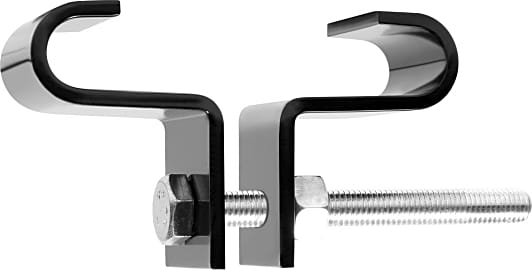

Noted that the Title Heavybag can hold bags weighing up to 200 pounds. We also mentioned that the Yes4All Steel includes a chain with four steel hooks for attaching the punching bag; the hanger can swivel 360 degrees, allowing the chain to turn from side to side without any tangling occuring. Highlighted the ability of the Firstlaw Fitness Punch to roll smoothly along the beam — users really appreciate this feature, which allows them to set up temporary training areas in the basement quickly and easily.
Stationary mounts tend to be pretty similar in design: they’re usually made with steel and attach to the beam using a bolt. They do, however, vary in size — some only have an inch or two of adjustability (making them compatible with only beams of certain widths), while others can be adjusted to work with a wider variety of beams.
Some sliding models are adjustable as well (the ProMountings IB-2100 is compatible with beams from 3.5 to 10 inches thick), while others are available in a variety of sizes, which means you’ll have to be sure about the width of your I-beam before you purchase the mount.
December 7, 2018, by Sam Kraft:
Though some users indicated that the Title Heavybag tends to shift around on the beam, the issue appears simple to address with some extra reinforcement. Both the Firstlaw Fitness Punch and ProMountings Wide have the ability to slide back and forth on the beam, which makes them highly versatile.
Special Honors
Firstlaw Fitness Rolling Rail Systems For a garage or gym with no exposed steel beam, Firstlaw sells overhead rail systems in 4 and 8 foot lengths with a trolley that rides the rail, so a bag can still roll out of the way. The rail itself has to be fixed to a structure that can carry a swinging bag, so read Firstlaw's instructions and check your ceiling before ordering. firstlawfitness.com
Measure The Flange Before You Shop
Measure its width edge to edge and check its thickness at the edge; the beam's height doesn't matter.
A beam mount grips the flange, the flat plate along the bottom of the beam. Measure its width edge to edge and check its thickness at the edge; the beam's height doesn't matter. Most basement beams in houses have a flange somewhere around four to six inches wide.
Mounts handle width in three ways. Firstlaw builds each clamp for one width and sells them in quarter-inch steps from 3 to 12 inches (Firstlaw Fitness), so a wrong measurement means a clamp that won't go on. Meister's clamp has sliding jaws and comes in four bands: 3.5 to 5.5, 5.5 to 7.5, 7.5 to 9.5 and 9.5 to 14 inches (Meister). Rolling trolleys are either preset or use spacers, and ProMountings splits its rollers into a 4.5 to 7 inch model and a 7 to 10 inch model (ProMountings).
Cheap hook-and-rod clamps adjust too, but their hooks only wrap a flange up to a certain thickness, often well under an inch. Old or heavy beams with thick flanges may need a plate-style clamp instead.
Fixed Clamp, Rolling Mount Or Strap
A fixed clamp is the simplest and cheapest way to hang a bag, and it suits a room where the bag can stay up. A rolling mount, sometimes sold as a sliding mount, rides the flange on wheels so you can push the bag to the end of the beam when you need the floor. Brakes lock it during a workout. Leaving the brakes off lets the bag travel along the beam, which some boxers use for footwork.
Firstlaw also sells overhead rail systems in 4 and 8 foot lengths for rooms with no exposed beam (Firstlaw Fitness). For wood joists, use a joist hanger that bolts into the wood, like the forged hangers Title Boxing sells (Title Boxing); a steel beam clamp has nothing to grip there.
A strap wrap goes around the whole beam and works on steel or wood, but only where there's open space above the beam to pass the strap. Meister's version fits beams from 16 to 44 inches around (Meister).
Load Ratings And The Beam Above
Load ratings don't all mean the same thing. Meister rates its clamp for 500 pounds including the dynamic forces of a swinging, punched bag, which is the right way to think about it (Meister). Firstlaw rates its clamp for 1,000 pounds and says it tested past 5,000 (Firstlaw Fitness). ProMountings quotes 300 pounds for its range, but individual roller models are rated lower, so check the model you buy (ProMountings). Budget clamps often claim 700 pounds or more with no test behind it.
A bag that weighs 100 pounds pulls far harder than that when it swings and gets hit, and the mount is only as strong as the beam, its connections and the structure it holds up. If the beam is old, light, rusty or holds up a floor you're unsure of, have a contractor or engineer look before you hang anything.
Tighten every bolt to the maker's instructions, check them again after the first few sessions, and look for rust or flaking paint where the clamp bites. A spring between the mount and the bag's chain softens the jolt and cuts noise in the rooms above.
How we researched this
We compared 19 beam mounts and hangers, read the makers' spec pages and fit charts for the 8 finalists, studied owner feedback for patterns in fit and loosening, and checked every brand for recalls with the U.S. Consumer Product Safety Commission. We found no independent lab test of beam clamps, so load ratings and test results on this page are the makers' own.
Frequently asked questions
How do you hang a punching bag from an I-beam?
Clamp a mount onto the beam's bottom flange, tighten its bolts, and hang the bag's chain from the mount's ring with a carabiner or swivel. No drilling is needed. Measure the flange width first so the mount fits.
Will a beam clamp fit my beam?
Measure the flat bottom flange edge to edge and check its thickness. Fixed-width clamps must match that width exactly; adjustable clamps cover a band of widths, so pick the band your beam falls in.
Can I move the bag out of the way?
Yes, with a rolling mount. It rides the flange on wheels and locks with brakes, so you can park the bag at one end of the beam between workouts.
How heavy a bag can a beam mount hold?
It depends on the mount: makers here rate theirs from 250 to 1,000 pounds. A swinging bag pulls much harder than its weight, so stay well within the rating and make sure the beam itself is sound.
Can I use a beam clamp on wood joists?
No. A beam clamp needs a steel flange to grip. For wood joists, use a hanger that bolts into the joist, or a strap that wraps an exposed beam.
