The 8 Best 16 Channel DVRs
Updated by · How we research
Coax DVRs, hybrid recorders and PoE kits compared on camera support, storage and brand lock-in. The ANNKE 3K Lite, sold with a drive, suits most upgrades. When users buy our independently chosen editorial choices, we may earn commissions to help fund the Wiki.
A security recorder is only as sharp as the cameras feeding it and only as useful as the hard drive inside, and plenty are sold without one. These picks are for homes and small businesses with coax cable already run to their cameras, plus network options for anyone wiring from scratch, where a single cable carries both power and video.
Editor's Notes
October 26, 2026, by Ezvid Wiki Editors:
The ANNKE 3K Lite now leads this list. It's one of the few recorders at a modest price that comes with a surveillance drive installed, reads every common coax camera signal and carries a two-year warranty.

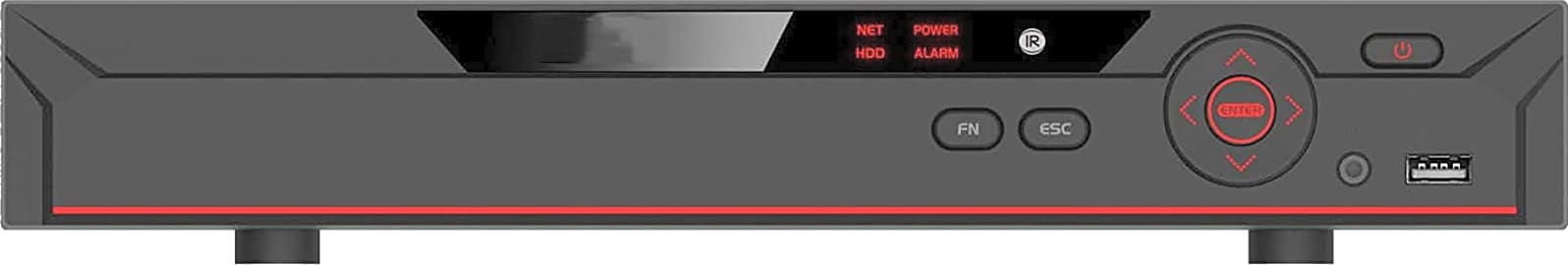

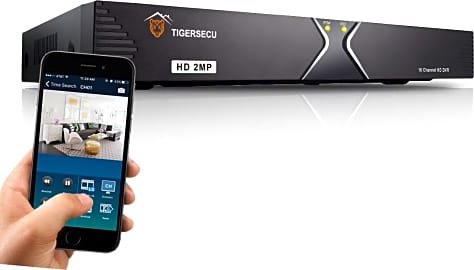

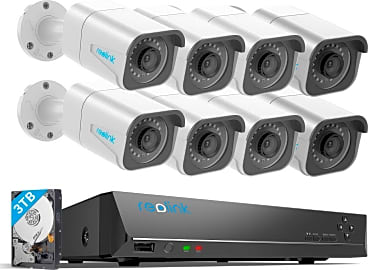

Seven of the nine earlier picks dropped out. The Safevant Recorder, GW Security System, Dahua XVR, Lorex DV900 Series, Q-See QC9916-2 and Samsung Wisenet have been discontinued, while the Onwote Expandable kit has sat out of stock. The Tigersecu Super HD stays because it accepts almost any camera you already own. The Reolink NVR entry stays too, now as the Reolink RLK16-800B8 kit with eight cameras.
This page covers recorders for security cameras, not TV recorders. No lab has tested these boxes, so we lined up each maker's input chart (which coax signals, how many network cameras, which drives), weighed owner complaints about setup and alerts, and read a 2024 FBI warning about hackers breaking into recorders that still use default passwords. That warning shaped the security advice below.
Earlier notes
January 6, 2021, by Kaivaan Kermani:
I’ve moved this list towards including models which allow for higher-resolution cameras, and though a few of these will still only afford a maximum of 2 megapixels (1080p), all should allow for at least 1MP (720p). These digital video recorders (DVRs) pretty much have the same function that the DVRs that you hook up to your TV do, but these models come with many more channels, and are therefore specifically marketed towards security systems. We do also have a list of the best DVR cameras which should include boxes with a variety of number of channels. Aside from that, all the models in that list come with both the DVR recorder, as well as the cameras – by contrast, this list is focused on highlighting DVR recorders and not cameras, though some of the newer PoE-based models I’ve added will include some IP cameras. Obviously, those models with ethernet ports won’t work with digital formats like HD-CVI, HD-TVI or AHD, though they’re excellent nevertheless.
IP cameras have the advantage of wireless connectivity, which can obviously afford a lot of flexibility over traditional closed-circuit cameras. A common concern is that a wireless feed can be hacked - this is the case with some models, though you won’t have this issue with devices that communicate over secure, encrypted networks. Many IP cameras do need a network video recorder (NVR) as opposed to a DVR, with models that provide an interface for both IP cameras as well as wired digital ones, like the Dahua XVR, often referred to as hybrid models, or XVRs – these models allocate a certain number of channels for both types of cameras, so you may find expressions like ‘16 + 8 channels’. DVR models with coax connectors will also support the older analog models. Also note that the amount of space or external storage you need will depend on the resolution of your cameras, as well as the video compression format (h.264, h.264+, h.265, etc.) of the recorder.
November 28, 2018, by Jeff Newburgh:

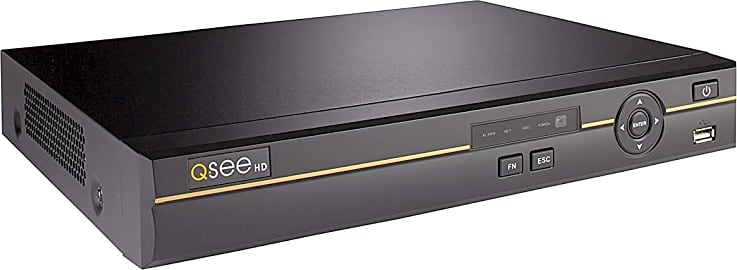

Included the GW Security System for its high-quality video compression technology and large storage capacity. Added the Onwote Expandable due to its built-in microphone and the Lorex DV900 Series for its prerecording function. The Amcrest UltraHD provides dependable infrared night vision, while its mobile app facilitates simultaneous viewing of all its cameras using a mobile device. Also decided to include the Q-See QC9916-2 due to its ability to map locations for motion activated alerts.
Special Honors
Lorex Lorex sells 16-channel DVR and NVR systems with matching cameras through its own store and big-box retailers, with fewer of them listed on the main marketplaces. Its recorders are designed around Lorex cameras, so it suits buyers who want one brand and in-store support options. lorex.com
Blue Iris Blue Iris is Windows software that turns a PC into a recorder for network cameras from many brands, sold with a one-time license. It's a common choice for people who outgrow a locked-in NVR, though it doesn't record coax cameras and needs a capable, always-on computer. blueirissoftware.com
DVR, Hybrid Or NVR: Start With Your Wiring
The trade-off is new Ethernet runs and, often, brand lock-in: several recorders here work only with the same maker's cameras, and others only promise full features with them.
Look at the cable before you look at the recorder. A DVR records cameras that send video down coax, the round cable with twist-on BNC plugs. Most current DVRs are hybrids: they read the four common high-definition coax formats (TVI, AHD, CVI) plus old analog, and many also take a few network cameras. If a building already has coax to each camera spot, a hybrid DVR and new coax cameras reuse that cable, which is the cheapest upgrade.
An NVR records network (IP) cameras over Ethernet. With PoE, one cable carries power and video up to about 330 feet, and IP cameras reach 4K and beyond. The Reolink RLN16-410 takes 16 wired cameras, cameras up to 16MP, and two drives. The trade-off is new Ethernet runs and, often, brand lock-in: several recorders here work only with the same maker's cameras, and others only promise full features with them. Before buying, read the per-channel limits, not the headline. A box sold as 4K may record its top resolution at 15 frames per second, and some budget DVRs reject coax cameras above 2MP.
Hard Drives And How Long Footage Lasts
Many recorders are sold without a drive and only show live video until you fit one. Use a drive built for surveillance, such as WD Purple, Seagate SkyHawk or Toshiba S300, which are made to write around the clock. Check the recorder's limit: some take one drive, others two, and maximum sizes run from 8TB to 16TB per bay. Several budget DVRs can't record to an external USB drive at all; USB is for exporting clips.
For a rough estimate, each 1 Mbps camera stream fills about 10.8 GB a day (IP Security Depot calculator). Sixteen 1080p cameras with H.265 compression at 15 frames per second need roughly 7TB for a month of nonstop recording, so a 4TB drive holds about two weeks. Recording only when there's motion often cuts that by half or more, and the NetView CCTV storage guide walks through the same trade-offs. Set the recorder to overwrite the oldest footage, check playback monthly, and plan to replace a drive that has run nonstop for several years.
Passwords, Updates And Recording Laws
Recorders are a favorite target for hackers. In December 2024 the FBI warned that a malware campaign was scanning the internet for DVRs and cameras with default passwords and unpatched flaws (FBI notice). Change the admin password on day one, install firmware updates, and turn off remote features you don't use, as the UK's cyber agency advises in guidance CISA shared (CISA). View cameras through the maker's app or a VPN rather than opening router ports.
Recording video on your own property is generally legal, but recording audio can fall under wiretap laws, and about a dozen states require everyone's consent to record a conversation (Ajax Systems overview). Leave microphones off unless you've checked your state's rules, keep cameras out of bathrooms and bedrooms, and tell employees about workplace cameras. Government agencies and contractors should also check the FCC Covered List, which since 2022 bars new equipment approvals for Hikvision and Dahua video gear, including units sold under other labels.
How we researched this
We compared 28 recorders and camera kits, read the makers' spec sheets and input charts for the 8 finalists, analyzed owner feedback on setup, alerts and drive support, and checked every brand against the Consumer Product Safety Commission's recall records. We also reviewed FBI and CISA security advice for recorders and the FCC Covered List.
Sources (8)
- Reolink: RLN16-410 NVR
- IP Security Depot: video retention storage calculator
- NetView CCTV: CCTV storage and hard drive guide
- FBI IC3: HiatusRAT notice, December 2024
- CISA: NCSC advisory on securing internet-connected cameras
- FCC: Covered List
- Ajax Systems: is recording audio on security cameras illegal
- CPSC recall database
Frequently asked questions
What's the difference between a DVR and an NVR?
A DVR records cameras connected by coax cable. An NVR records network cameras over Ethernet, usually powering them through the same cable. Hybrid DVRs do both, with most channels for coax and a few for network cameras.
Is this page about TV DVRs?
No. These are recorders for security cameras. Cable and streaming TV recorders are a different kind of device.
How long will a 4TB drive hold footage from 16 cameras?
About two weeks of nonstop 1080p recording with H.265 compression, by a common rule of thumb. Motion-only recording often stretches that to a month or more.
Can I mix camera brands on one recorder?
Often, for coax cameras that use a standard format such as TVI or AHD. Network cameras are less predictable: some recorders accept only their own brand, and others need ONVIF support and still may lose features like smart alerts.
Do I need a monitor?
For setup, it helps. Most recorders have HDMI and VGA outputs and set up through an on-screen menu with a mouse. After that, the phone app handles day-to-day viewing.
Is it legal to record audio?
It depends on your state. Video on your own property is generally fine, but recording conversations can fall under wiretap laws, and some states require consent from everyone recorded. Keep audio off unless you've checked.
